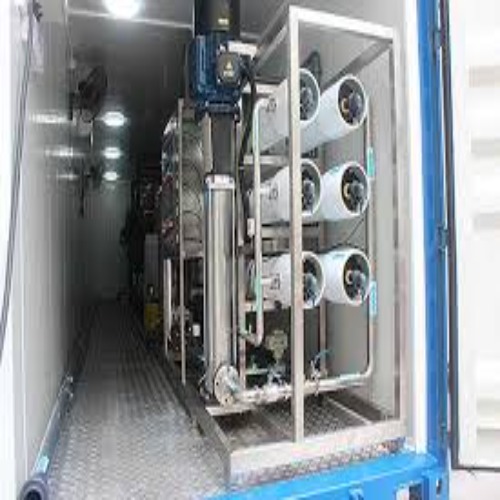

Containerized Ro Plant

Name: Containerized Ro Plant
Brand: AQUA PURIFICATION
Price: 140000.0 INR
Availability: InStock

Price 140000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Containerized Ro Plant Specification

Feature
Plug and play design, compact, mobile, weatherproof

Technology
Reverse Osmosis (RO)

Usage & Applications
Drinking water, industrial water, construction sites, emergency supply

Power Consumption
3 - 25 kW depending on capacity

Pump Type
High-pressure multistage pump

Ph Level
6.5 - 7.5 (adjustable)

Recycle Rate
Up to 75%

Water Out Conductivity
<20 S/cm

Flow Rate
Customized as per requirement

Water in conductivity
<2000 S/cm

Efficiency (%)
Up to 98%

Noise Level
Below 70 dB

Frequency
50 Hz

Volume
Customizable depending on container size

Product Type
Containerized Reverse Osmosis Plant

Purity Level
Up to 98% TDS removal

Material
Stainless Steel/FRP/PVC

Automatic Grade
Automatic

Drive Type
Electric Motor

Voltage
380/415V, 3 Phase, 50 Hz

Water Source
Borewell, River, Lake, Municipal supply

Power Source
Electric

Filter Type
Multi-grade, Activated Carbon, Micron Filter

Capacity
250 LPH to 20,000 LPH

Installation Type
Container-mounted, ready-to-use

Service Support
Remote monitoring and on-site service available

Chlorine Tolerance
<0.1 ppm

Operating Pressure
10-20 bar as per feed water quality

Ambient Temperature Range
5C - 50C

Interconnection Piping
UPVC/SS304/PPR depending on model

Control System
PLC-based automatic control panel with HMI

Membrane Type
Thin Film Composite (TFC)

Container Size
20 ft / 40 ft ISO standard containers

Cleaning System
Automatic chemical cleaning (CIP system)

Inlet/Outlet Connection
2"/1.5" flange or quick coupling

Safety Features
Low pressure protection, overload protection, dry run protection

Pretreatment Stage
Sand filter, activated carbon filter, softener (optional)

Shipping Condition
Fully assembled, factory tested, ready for dispatch

Display/Indicators
Conductivity, flow, pressure and pH indicators

Skid Frame
Heavy-duty powder coated steel

Containerized Ro Plant Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Containerized Ro Plant

we manufacturer trolly based ro plant1000 LPH RO Plant
This commercial-grade reverse osmosis water purifier offers superior-quality drinking water and includes a sediment filter, carbon filter, FRP vessel, and RO membrane to help remove impurities from your water source.

Flexible, Ready-to-Use Design

Engineered for simple installation and immediate operation, our containerized RO plants arrive fully assembled, factory tested, and ready for quick commissioning. The system's modular, compact design is suitable for challenging environments, construction sites, and remote locations, ensuring consistent performance under varying conditions.

Advanced Filtration and Automation

Equipped with multi-stage filtration-including sand and activated carbon-and thin film composite membranes, the plant efficiently removes impurities from multiple sources. The PLC-based control system with HMI enhances user control and monitoring, managing safety protections like low pressure, overload, and dry run to safeguard your investment.

Reliable Service and Customization

Our units offer customizable capacity and flow rates, as well as flexible inlet/outlet options and piping materials to match specific project requirements. With remote monitoring, on-site support, and robust after-sales service, our team ensures optimum system performance and longevity wherever installed in India.

FAQ's of Containerized Ro Plant:

Q: How does the containerized RO plant operate upon arrival at the site?

A: The plant arrives fully assembled and factory tested inside a 20 ft or 40 ft ISO container, requiring only connections for electrical power and feed water. Its plug-and-play design allows for fast deployment, with automatic operation managed by a PLC-based panel and user-friendly HMI interface.

Q: What types of water sources are compatible with this RO plant?

A: This containerized system is suitable for treating water from borewells, rivers, lakes, and municipal supplies, efficiently handling water with conductivity up to 2000 S/cm. It delivers purified output water with conductivity below 20 S/cm and TDS removal of up to 98%.

Q: When is it necessary to perform maintenance and cleaning on the RO system?

A: The plant is equipped with an automatic chemical cleaning (CIP) system that initiates cleaning based on operating conditions or at scheduled intervals, as indicated by the control panel. Routine checks and maintenance schedules are provided to ensure optimal performance and membrane longevity.

Q: Where can these containerized RO plants be effectively utilized?

A: These mobile units are ideal for drinking water supply, industrial operations, construction sites, emergency events, or any location requiring weatherproof, reliable, high-capacity water purification. Their robust construction and noise level below 70 dB allow for use in urban and remote settings alike.

Q: What is the process behind the multi-stage filtration system?

A: Feed water passes first through sand filters and activated carbon filters to remove suspended solids and chlorine, then (optionally) through a softener, followed by micron filtration. High-pressure pumps feed water to TFC membranes for reverse osmosis, producing high-purity water.

Q: How can customers benefit from the plant's automation and service support?

A: The PLC-based control provides real-time monitoring of key parameters and automates operation, which minimizes manual intervention. Customers also benefit from remote monitoring, on-site service availability, and quick troubleshooting support to maximize uptime and efficiency.
